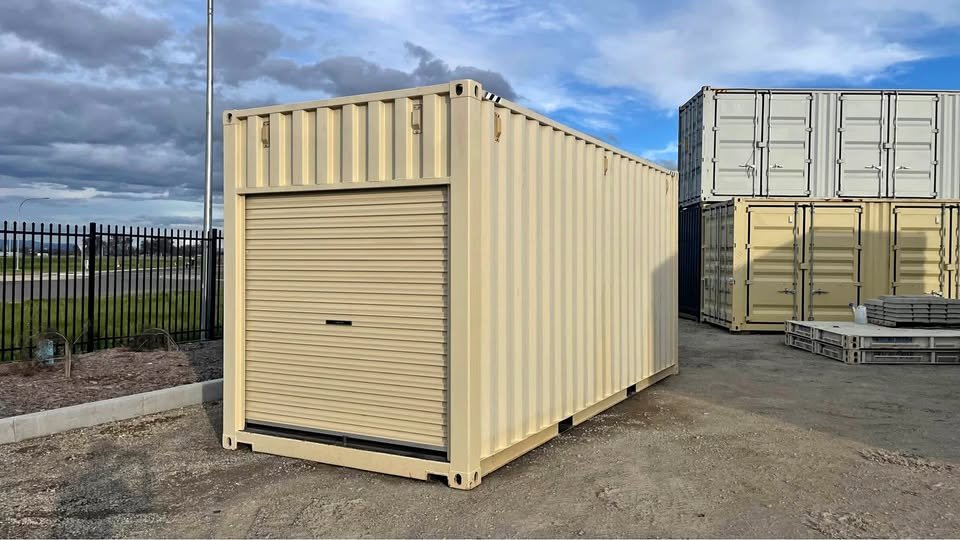

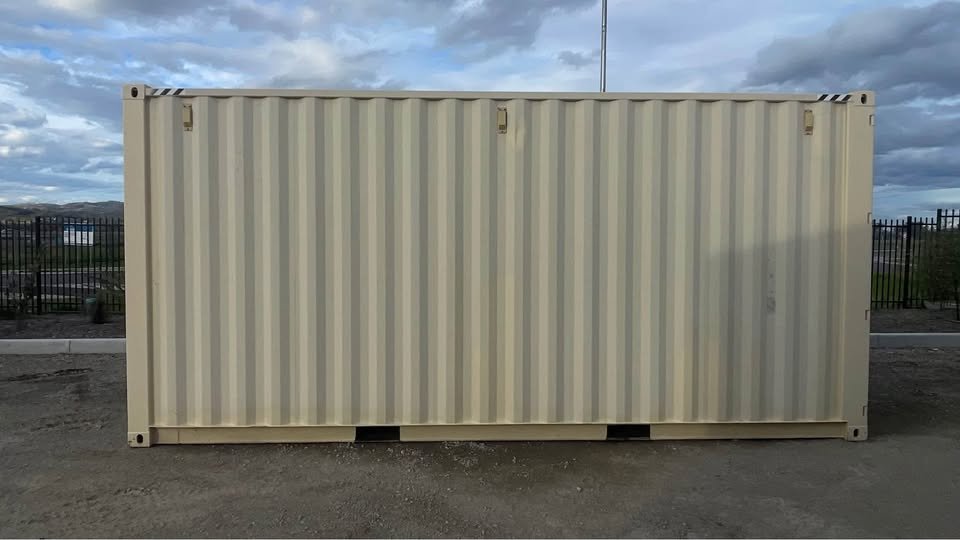

20ft HC Shipping Container with Rollup Door – Extra Height, Secure & Easy Access

This 20-foot high cube shipping container offers a secure and weather-resistant storage or transport solution for commercial, industrial, and agricultural applications. The unit features an additional one foot of vertical space compared to a standard container and is fitted with a rear rollup door for convenient ground-level access. Constructed from weathering-resistant COR-TEN steel, this container is designed to withstand harsh elements while protecting its contents. It is suitable for use as onsite storage, a mobile workshop, or for the secure shipment of goods .

Key Features

• High Cube Design: Provides approximately one foot of additional interior height (9’6″ externally) compared to a standard 20ft shipping container, allowing for taller equipment or additional shelving.

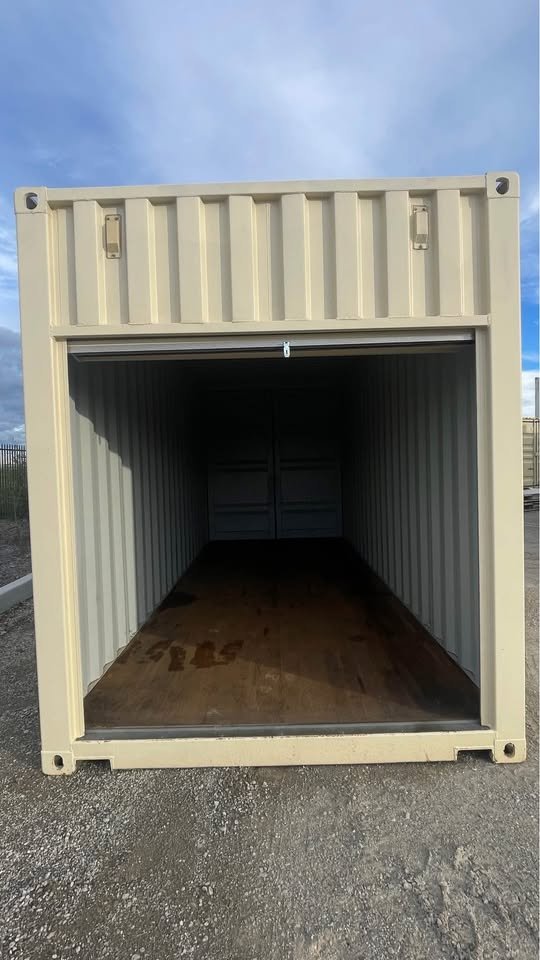

• Rollup Door for Easy Access: Fitted with a rear rollup door that operates on spring-assisted tracks, allowing for full-width access and easier loading and unloading of palletized or bulky items from ground level.

• Durable Weather-Resistant Construction: Manufactured with weathering COR-TEN steel to form a rigid, waterproof structure that resists corrosion and rust development over time.

• Secure Locking Mechanism: The container includes welded-on locking hardware on the rollup door to accommodate customer-supplied padlocks, helping to deter unauthorized access and secure inventory or equipment .

• Ventilated Design: Passive vents are integrated into the container structure to reduce condensation and promote airflow, helping to protect the interior and contents from moisture buildup.

• CSC Plate Compliant: Manufactured in accordance with International Convention for Safe Containers (CSC) requirements, certifying the container as safe for transportation and handling.

Detailed Description

The 20ft High Cube (HC) Shipping Container with Rollup Door is a specialized cargo container designed to bridge the gap between standard secure storage and the need for frequent, easy access. Unlike traditional swing doors that require clearance space to open outward, the corrugated sliding rollup door retracts into a box above the opening, making this unit ideal for locations with limited space or for drive-in access with a forklift or pallet jack.

Built for longevity, the container frame and panels are constructed from heavy-gauge weathering steel, which develops a protective patina over time to resist atmospheric corrosion. This makes the container suitable for long-term outdoor placement in various climates across the United States. The flooring consists of marine-grade plywood treated to withstand heavy point loads from forklifts or stored machinery.

The interior of this high cube unit offers ample vertical clearance, making it easier to store tall machinery, racking systems, or bulkier items that would not fit in a standard container. The combination of the high cube height and the full-width rollup door transforms the unit into a versatile asset for job sites needing a secure yet accessible tool shed, or for warehouse expansion requiring durable, modular storage. All structural components, including the door tracks and bottom rails, are built to ISO standards, ensuring the container remains stackable and transportable if needed.

Technical Specifications

• External Dimensions (L x W x H): 20 ft x 8 ft x 9 ft 6 in (Approx. 6.06m x 2.44m x 2.90m)

• Internal Dimensions (L x W x H): 19 ft 4 in x 7 ft 8 in x 8 ft 10 in (Approx. 5.90m x 2.35m x 2.70m)

• Door Opening (W x H): 7 ft 6 in x 7 ft 8 in (Approx. 2.28m x 2.34m)

• Material: Weathering COR-TEN Steel (Minimum thickness 14-gauge)

• Flooring: Marine-grade treated plywood (28mm thickness typical)

• Maximum Gross Weight: Approx. 67,200 lbs (30,480 kg)

• Tare Weight: Approx. 5,400 lbs (2,450 kg)

• Payload Capacity: Approx. 61,800 lbs (28,030 kg) (Weight of cargo)

• Door Type: Corrugated interlocking steel slats with rollup mechanism

• Locking Type: Lockable latch hasp for padlock (Padlock not included)

• Ventilation: Two passive vents (one at each end)

Compatibility / Intended Use

• On-Site Storage: Secure storage of building materials, tools, and equipment on construction sites.

• Agricultural Use: Storage of feed, hay, farm equipment, or as a secure shelter for supplies.

• Retail & Commercial: Ideal for back-of-house overflow storage, document archiving, or inventory management.

• Industrial Use: Secure containment for raw materials, parts, or waste.

• Transport & Logistics: Suitable for intermodal transport via truck, rail, or ship.

Package Includes

• 1 x 20ft High Cube Shipping Container with integrated Rollup Door

• Unit is sold as a complete, pre-assembled structure. Padlocks, shelving, and interior modifications are not included.
