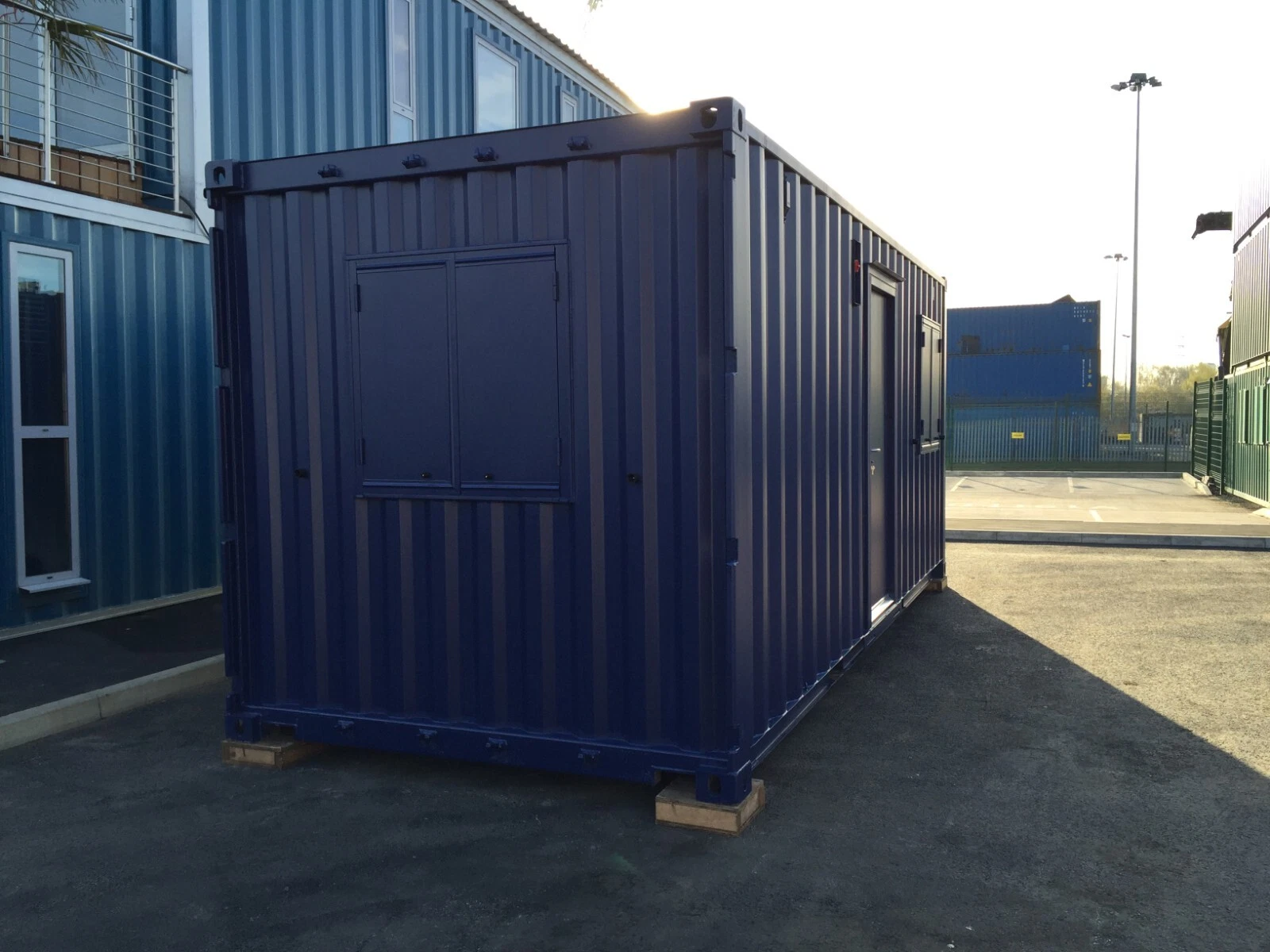

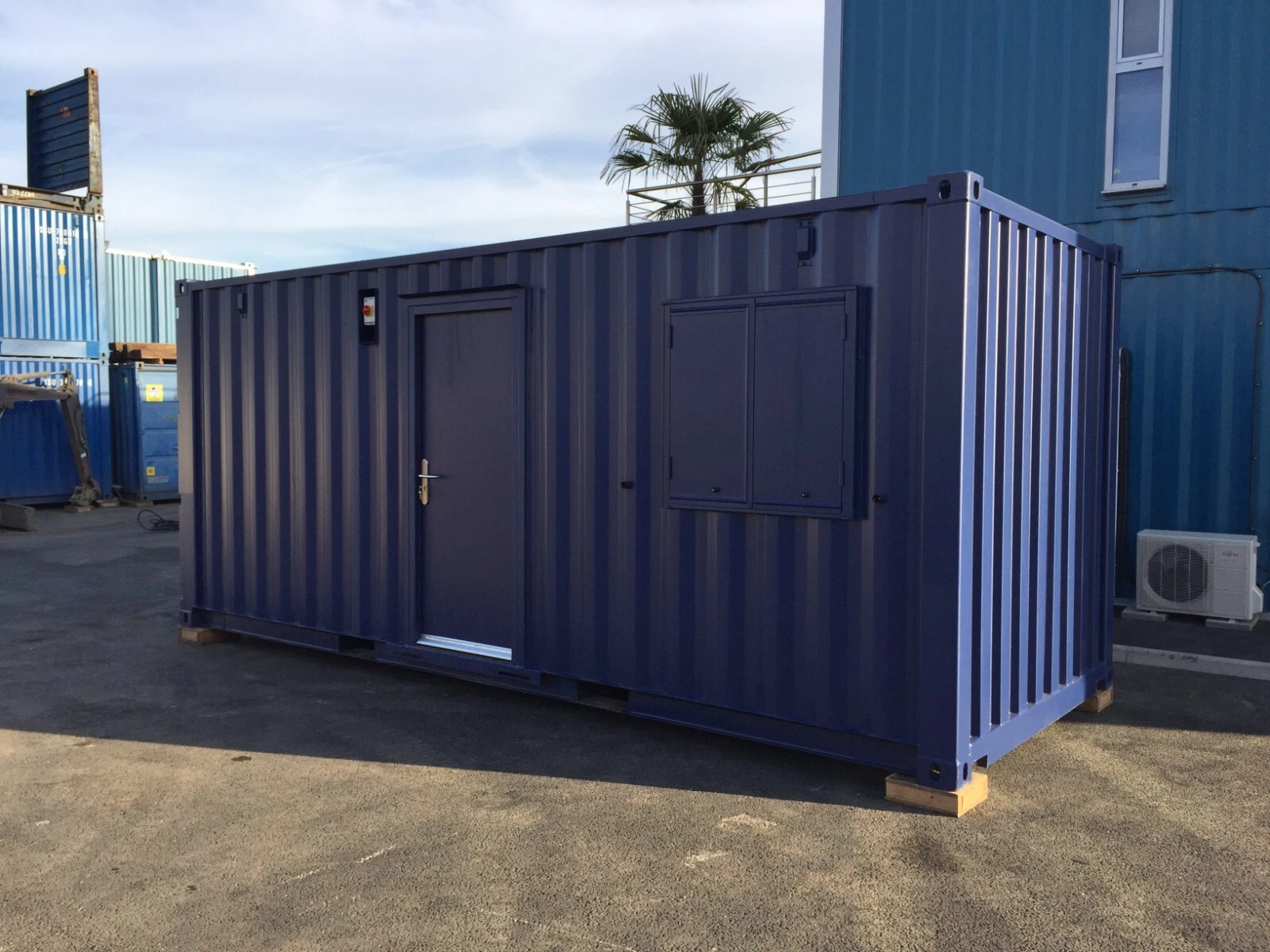

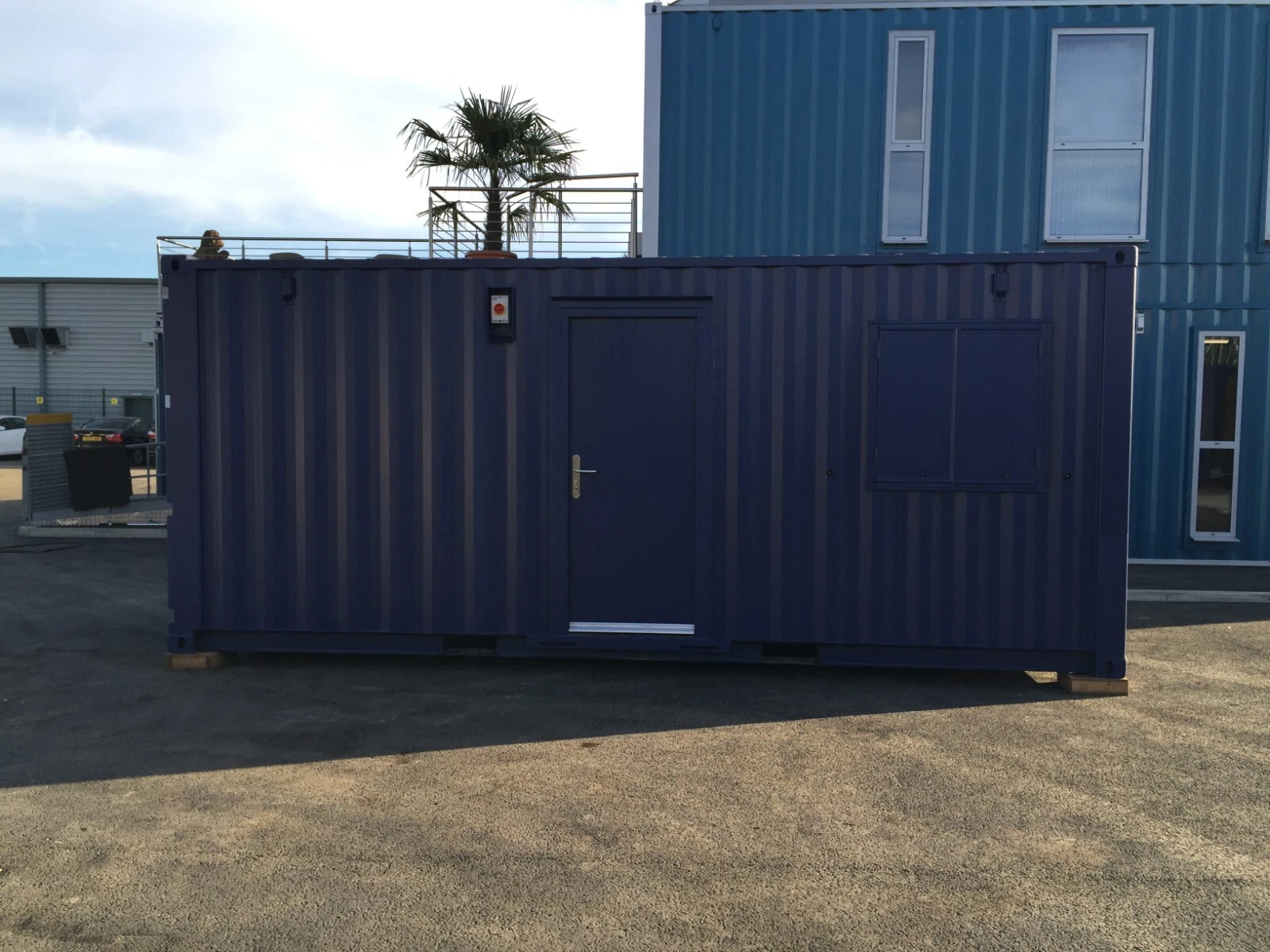

Product Description: Portable Office Site Cabin Container 20ft x 8ft

Short Introduction
This Portable Office Site Cabin Container provides a secure and durable workspace solution for various commercial and industrial environments. Constructed from heavy-duty steel, this 20-foot unit is designed to function as a self-contained office space that can be deployed and made operational with minimal site preparation. The structure is fabricated to withstand the demands of job sites while offering a finished interior suitable for administrative tasks .

Key Features

• All-Steel Construction: Fabricated from tested quality steel with a welded shell, including a base frame, peripheral structure, and a self-draining roof. The four corner columns are reinforced to facilitate transportation and lifting .

• Insulated Interior: Walls and roof are fitted with insulation material to help moderate internal temperatures and reduce external noise transmission .

• Finished Interior Paneling: The interior is finished with 6mm decorative particle board cladding, providing a clean and professional appearance suitable for office use .

• Durable Flooring System: The floor is constructed with cement board fixed to the base frame, finished with vinyl flooring for durability and ease of cleaning .

• Integrated Electrical System: Pre-wired for 250-volt, 50 Hz single-phase AC power supply. Electrical wiring is concealed within PVC conduits and includes a distribution board with MCB protection. Lighting fixtures and ceiling fans are installed, and pre-wiring for air conditioning units is provided .

• Corrosion-Resistant Treatment: External steel surfaces are treated with a zinc chromate primer followed by an epoxy or polyurethane topcoat to enhance weather resistance and durability .

Detailed Description
The Portable Office Site Cabin Container is engineered as a modular, self-contained unit designed to meet the spatial and structural requirements of temporary or permanent site offices. The 20-foot by 8-foot footprint offers a functional layout for administrative functions, personnel welfare, or site management hubs.

The unit is built around a heavy-duty steel frame. The base structure is constructed from pressed mild steel channels, while the walls and roof are formed from corrugated steel sheets welded to the frame, ensuring structural rigidity. Glass wool insulation is integrated into the wall and roof cavities, which is a common method for improving thermal performance and acoustic dampening in modular structures .

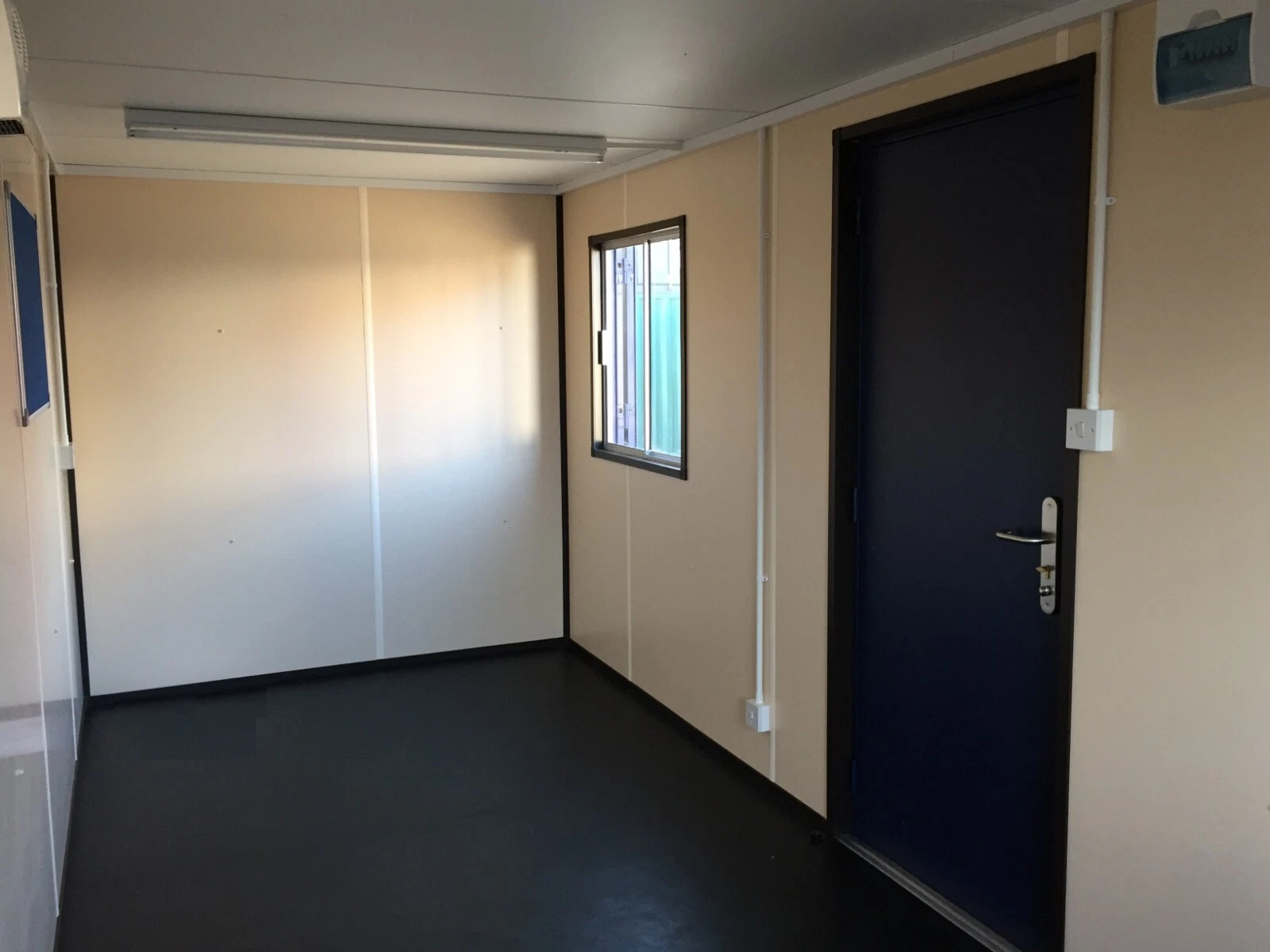

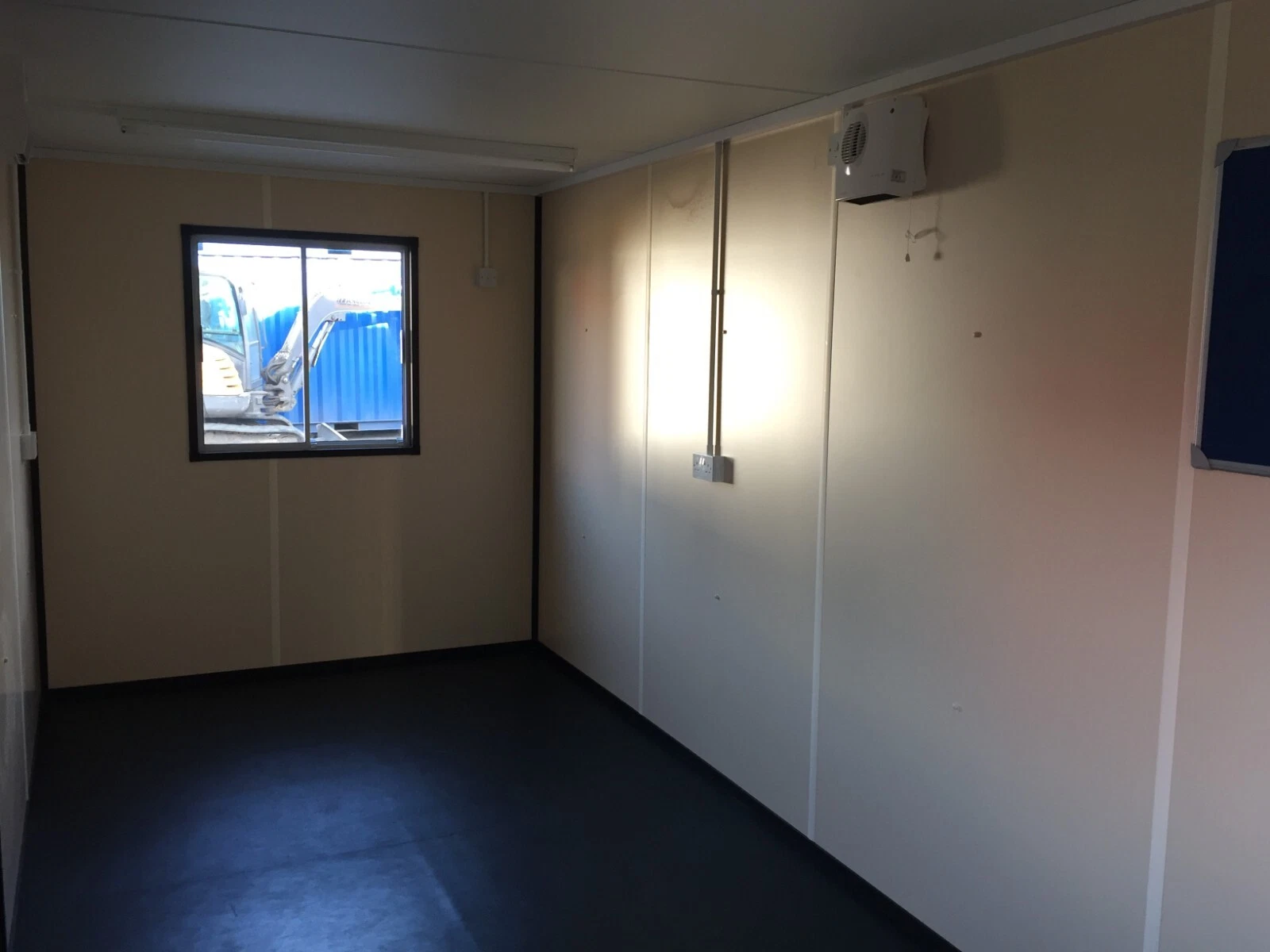

Access is provided via a durable steel door fitted with locking mechanisms and handles on both the interior and exterior sides. Aluminum sliding windows are installed to allow natural light and ventilation. The interior surfaces are clad in decorative laminated particle board, offering a finished look that contrasts with the unit’s rugged exterior. The electrical installation includes internal switchboards, power sockets, and connections ready for standard office equipment and HVAC units, with all wiring conforming to concealed conduit standards for safety .

Technical Specifications

Intended Use
This portable cabin is designed to function as an on-site administrative office, a personnel welfare room, or a security checkpoint. Its durable construction and finished interior make it suitable for a variety of applications, including:

• Construction site project management offices

• Mining and resource sector site accommodation

• Industrial facility guard houses and entry gates

• Temporary classrooms or field clinics

• Event ticket booths and information centers

Package Includes
The unit is supplied fully assembled and includes:

• One (1) 20ft x 8ft Portable Steel Cabin Structure

• Pre-hung Steel Entry Door with Locking Hardware

• Installed Aluminum Sliding Windows

• Complete Internal Electrical System: Distribution board, MCB, interior LED lighting, ceiling fans, and pre-wiring for an air conditioning unit.

• Installed Wall Outlets (Quantity and type as per US standard configuration)
